ALL / HEADER CARTS & WAGONS / RUNNING GEAR / WAGONS / 8 WHEEL UNITS (16-40 TON CAP.) / Model 308 - 20 Ton 8 Wheel Wagon Gear LESS Wheels/Tires
Return to search results

MODEL 308 - 20 TON 8 WHEEL WAGON GEAR LESS WHEELS/TIRES


Part #: 308
Mfg: HORST WAGONS
List Price: $9,005.00
Dealer Locator: Find a Dealer near you

Need more info on this product or looking for a quote? Send us a request below to have a knowledgeable dealer contact you.

Request Quote or More Info!
  • Equipped with a quick hitch retractable tongue
  • Standard round reach length is 11 ft.
  • Wheelbase is adjustable from 12' 7" to 15' 1", see OPTIONS for additional reach length
  • Heavy Duty automotive style tie rod ends are standard
  • Equipped with 8 bolt hubs rated at 12,000#
  • SELECT COLOR in Options tab
  • LESS Wheels / Tires: SEE OPTIONS for rim & tire choices
There are currently no video files available

The 308 Wagon is a 20 Ton capacity double tandem eight wheel running gear with rear walking beam and front quad steering. Adjustable wheelbase and retractable tongue are standard. Features tapered roller bearings on kingpins / steering pivot and heavy duty tie rod ends for no-sway trailering and long life.

DescriptionAvailabilityList Price
Red Color OptionCall For Availability$0.00
Green Color OptionCall For Availability$0.00

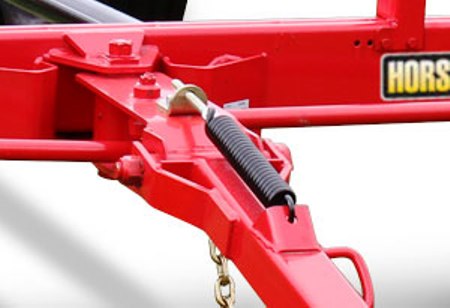

WA-SBD - Double Spring Tongue Balancer for Wagon GearCall For Availability$190.00
WA-SB - Single Spring Balancer for Tongue more info ...Call For Availability$115.00

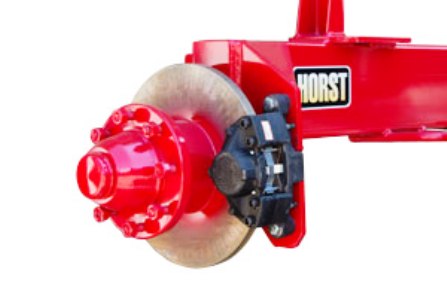

4WDISC - Four Wheel Hydraulic Disc Brakes must use 22.5 rimCall For Availability$6,107.00
2WDISC - Two Wheel Hydraulic Disc Brakes must use 22.5 rim more info ...Call For Availability$3,312.00
FLANGES-2 - Disc Brake Flanges Only (2) for One AxleCall For Availability$271.00
DescriptionAvailabilityList Price
14L x 16.1 8 Ply Tires/16.1 X W11C X 8 Rims (set of 8)Call For Availability$5,344.00
14L x 16.1 12 Ply Tires/16.1 X W11C X 8 Rims (set of 8)Call For Availability$6,424.00
16.5 x 16.1 10 Ply Tires/16.1 X W14C X 8 Rims (set of 8)Call For Availability$8,240.00
19L x 16.1 12 Ply Tires on 16.1 x W16C x 8 Rims (set of 8)Call For Availability$9,784.00
21.5 x 16.1 14 Ply Tires on 16.1 x W16C x 8 Rims (set of 8)Call For Availability$12,472.00
11 x 22.5 Used Truck Tires/22.5 x 8.25 x 8 HD Rims (set of 8)Call For Availability$2,584.00
11 x 22.5 Recap Truck Tires/22.5 x 8.25 x 8 HD Rims (set of 8)Call For Availability$5,824.00
12 (or 315) x 22.5 Used Truck Tires/22.5x8.25x 8 HD Rims (set of 8)Call For Availability$3,272.00
12 (or 315) x 22.5 Recap Truck Tires/22.5x8.25x8 HD Rims (set of 8)Call For Availability$6,376.00
305 x 22.5 Used Truck Tires/22.5 x 8.25 x 8 HD Rims (set of 8)Call For Availability$3,064.00
385 x 22.5 Used Truck Tires on 22.5 x 11.75 x 8 Rims (set of 8)Call For Availability$3,616.00
425 x 22.5 Used Truck Tires/22.5 x 11.75 x 8 Rims (set of 8)Call For Availability$4,144.00
425 x 22.5 Recap Truck Tires/22.5 x 11.75 x 8 Rims (set of 8)Call For Availability$8,376.00
425 x 22.5 Used Truck Tires/22.5 x 13 x 8 Rims (set of 8)Call For Availability$4,512.00
425 x 22.5 Recap Truck Tires/22.5 x 13 x 8 Rims (set of 8)Call For Availability$8,744.00
445 x 22.5 Used Truck Tires/22.5 x 13 x 8 Rims (set of 8)Call For Availability$5,936.00
385 x 22.5 New Truck Tires on 22.5 x 11.75 x 8 Rims (set of 8)Call For Availability$10,608.00
425 x 22.5 New Truck Tires/22.5 x 13 x 8 Rims (set of 8)Call For Availability$11,232.00
425 x 22.5 New Truck Tires/22.5 x 11.75 x 8 Rims (set of 8)Call For Availability$10,864.00
445 x 22.5 New Truck Tires/22.5 x 13 x 8 Rims (set of 8)Call For Availability$11,968.00
400 / 55 x 22.5 16 Ply Tires on 22.5x13x8 Rims (set of 8)Call For Availability$15,320.00
DescriptionAvailabilityList Price
16.1 x W11C x 8 Rims ONLY less tires (set of 8)Call For Availability$1,360.00
16.1 x W14C x 8 Rims ONLY less tires (set of 8)Call For Availability$2,072.00
16.1 x W16C x 8 Rims ONLY less tires (set of 8)Call For Availability$2,328.00
22.5 x 8.25 x 8HD Rims ONLY less tires (set of 8)Call For Availability$1,728.00
22.5 x 11.75 x 8 Rims ONLY less tires (set of 8)Call For Availability$2,072.00
22.5 x 13 x 8 Rims ONLY less tires (set of 8)Call For Availability$2,440.00
DescriptionAvailabilityList Price
WARR-12 - 12 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$38.00
WARR-14 - 14 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$114.00
WARR-16 - 16 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$190.00
WARR-18 - 18 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$266.00
WARR-20 - 20 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$342.00
WARR-22 - 22 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$418.00
WARR-24 - 24 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$494.00
WARR-26 - 26 ft. Round Reach Length (set of 2) IN LIEU OF 11 ft.Call For Availability$570.00
DescriptionAvailabilityList Price
Spare 14L x 16.1 8 Ply Tire on 16.1 x W11C x 8 Rim (1)Call For Availability$668.00
Spare 11 x 22.5 Used Truck Tire on 22.5x8.25x8 HD Rim (1)Call For Availability$323.00

OPS MANUAL WAGONS

PARTS MANUAL 308

HLA WARRANTY

HORST WAGONS RUNNING GEAR BROCHURE

REACH LENGTH CHART

ASSEMBLY INSTRUCTIONS

HORST WAGONS CATALOGUE
