105 GAL 3-PT AIRBLAST SPRAYER W/33" FAN, VAR MANUAL CABLE CTRLS

Part #: A400/850 VDC

Mfg: JACTO SPRAYERS

List Price: $15,373.00

Dealer Locator: Find a Dealer near you

Need more info on this product or looking for a quote? Send us a request below to have a knowledgeable dealer contact you.

Request Quote or More Info!

click

PRODUCT OPTIONS

No options available

FEATURES

High Density Polyethylene Tank - Capacity 105 Gallons - Bypass w venturi agitation
Fan diameter = 33" - Fan Performance - 30,299 CFM @ 78 MPH
JP-75 piston pump 20 GPM - VAR manual cable controls
Max Row Width = 25' - Min Row Width = 4' - Max Crop Height = 25'
14 flip-over nozzle holder - 28 total nozzles
Nozzles installed - 24 AD5/AC-25
FVS-100 Suction Filter (M-30) w shut off valve - Min Tractor Engine HP = 55
Clean water tank - Spot spray compatible

DESCRIPTION

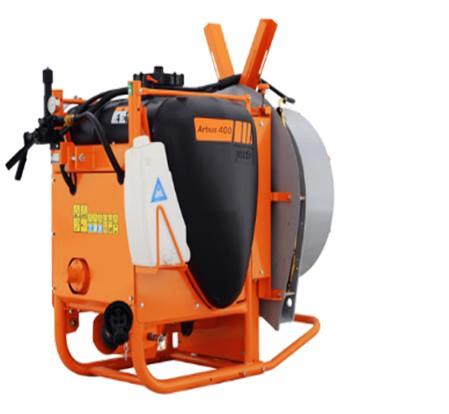

Jacto's Arbus 400/850 VDC is a 105 gallon high density poly 3 point PTO driven airblast sprayer with piston pump, bypass agitation and VAR manual cable controls. The A400/850 VDC utilizes our 33" two-port fan and is the perfect solution for hops, mature orchards, citrus or tall trees up to 25 feet in height and crops with very dense canopies.
