265 GAL TRAILED AIRBLAST SPRAYER W/33" FAN, CABLE CONTROLS

Part #: A1000/850

Mfg: JACTO SPRAYERS

List Price: $31,464.00

Dealer Locator: Find a Dealer near you

Need more info on this product or looking for a quote? Send us a request below to have a knowledgeable dealer contact you.

Request Quote or More Info!

click

PRODUCT OPTIONS

No options available

FEATURES

Fiberglass Tank - Capacity 265 Gallons - Mechanical & Bypass Agitation
Fan diameter = 33" - Fan Performance - 32,630 CFM @ 59 MPH
JP-75 piston pump 20 GPM - VAR electric in-cab controls
Max Row Width = 25' - Min Row Width = 6' - Max Crop Height = 30'
18 anti-drip flip-over nozzle holder - 36 total nozzles
Nozzles installed - AD-4/AC-23 & AD-6/AC-23
FVS-100 Suction Filter (M-30) w shut off valve - Min Tractor Engine HP = 60
Fresh water tank - Quick connect for spot spraying

DESCRIPTION

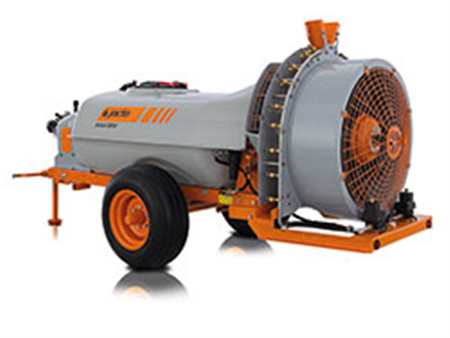

The Model A1000 is a 265 gallon trailed PTO driven airblast sprayer with piston pump, mechanical & bypass agitation and cable controls. This versatile machine is equipped with flip-over nozzles and variable pitch fan blades for precise, effective chemical delivery and crop protection. The tracking axle trailer design is exceptionally maneuverable.
