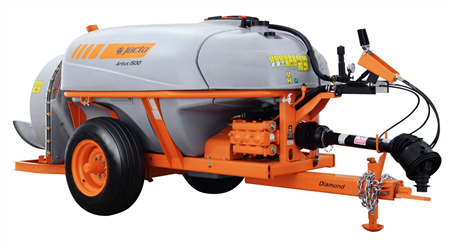

400 GAL TRAILED AIRBLAST SPRAYER WITH IN-CAB ELECTRONIC CTLS

Part #: A1500 DIAMOND/EL

Mfg: JACTO SPRAYERS

List Price: $31,647.00

Dealer Locator: Find a Dealer near you

Need more info on this product or looking for a quote? Send us a request below to have a knowledgeable dealer contact you.

Request Quote or More Info!

click

PRODUCT OPTIONS

GENERAL

Description	Availability	List Price
Spot Spray Gun (Hose adapter NOT included)	Call For Availability	$350.00
Hose Adapter for Spot Spray Gun, 3/8" Hose	Call For Availability	$12.00
Hose Adapter for Spot Spray Gun, 1/2" Hose	Call For Availability	$12.00

FEATURES

High Density Polyethylene Tank - Capacity 400 Gallons - mechanical and bypass agitation.
Fan diameter = 33" - Fan Performance Low-32,630 CFM @ 75 MPH - High-32,630 CFM @ 83 MPH
JP-150 piston pump - 40 GPM - VAR Electric in-cab controls
Max Row Width = 25' - Min Row Width = 6' - Max Crop Height = 25'
24 anti-drip flip-over nozzle holder - 48 total nozzles
Nozzles installed - AD-4/AC-56 & AD-5/AC-25
FVS-200 Double Suction Filter (M24/40) - Min Tractor Engine HP = 65
Fresh water tank - Quick connect for spot spraying

DESCRIPTION

The Model A1500 Diamond/EL is a 400 gallon trailed PTO driven airblast sprayer with piston pump, mechanical & bypass agitation and electronic in-cab controls. This versatile machine is equipped with flip-over nozzles and variable pitch fan blades for precise, effective chemical delivery and crop protection.
