150 GAL TRAILED AIRBLAST SPRAYER WITH CABLE CONTROLS

Part #: A500T

Mfg: JACTO SPRAYERS

List Price: $14,033.00

Dealer Locator: Find a Dealer near you

Need more info on this product or looking for a quote? Send us a request below to have a knowledgeable dealer contact you.

Request Quote or More Info!

click

PRODUCT OPTIONS

GENERAL

Description	Availability	List Price
1197701 MiniTower (only) for A200 & A500 Sprayers	Call For Availability	$2,325.00
ELKIT2A Valve Kit w/In-Cab Controls for Air Blast Sprayers more info ...	Call For Availability	$1,695.00

FEATURES

High Density Polyethylene Tank - Capacity 150 Gallons - Bypass w venturi agitation
Fan diameter = 22" - Fan Performance - 11,536 CFM @ 48 MPH
JP-50 piston pump 13 GPM - VAR manual cable controls
Max Row Width = 14' - Min Row Width = 5' - Max Crop Height = 12'
16 flip-over nozzle holder - 32 total nozzles
Nozzles installed - AD-2/AC-25 & AD-4/AC-25
FVS-100 Suction Filter (M-30) w shut off valve - Min Tractor Engine HP = 20
Chemical circuit rinse & Fresh water tank - Quick connect for spot spraying

DESCRIPTION

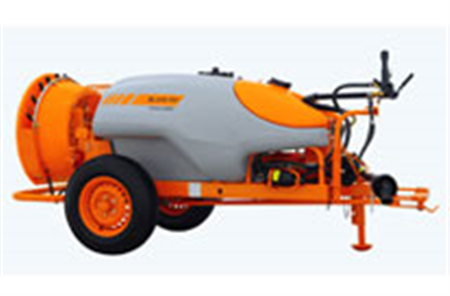

The Model A500T is a 150 gallon trailed PTO driven airblast sprayer with piston pump, bypass agitation and cable controls. This versatile machine is equipped with flip-over nozzles and variable pitch fan blades for precise, effective chemical delivery and crop protection. The tracking axle trailer design is exceptionally maneuverable.
